BGP Looking Glass with OpenBSD

something I’ve wanted to do for a long time and never got around to it …

Just give a try, it’s public available: https://bgp.stoege.net/

Prerequisite

  • OpenBSD VM (at least 2G RAM)
  • Public IPv4 / IPv6
  • DNS Record / Static IP
  • Full BGP Feed (don’t worry, you can get it for free)

httpd config

OpenBSD got their own HTTP Daemon in Base System. Let’s enable and configure it.

export fqdn="bgp.example.com"

or

export fqdn=$(hostname); echo $fqdn

httpd.conf

cat << EOF > /etc/httpd.conf
# httpd.conf

types {
  include "/usr/share/misc/mime.types"
}

# http server -> redirect
server "$fqdn" {

  listen on * port 80
  log access "nossl-${fqdn}.log"

  location "/.well-known/acme-challenge/*" {
    root "/acme"
    request strip 2
  }

  location * {
    block return 302 "https://${fqdn}"
  }

}

# https server
server "${fqdn}" {

  listen on * tls port 443
  log access "${fqdn}.log"

  tls {
    certificate "/etc/ssl/${fqdn}.fullchain.pem"
    key "/etc/ssl/private/${fqdn}.key"
  }

  location "/cgi-bin/*" {
    fastcgi socket "/run/slowcgi.sock"
    root ""
  }

  location "/" {
    block return 302 "https://${fqdn}/cgi-bin/bgplg"
  }

}
EOF

enable and start services

rcctl enable httpd slowcgi
rcctl start httpd slowcgi

acme config

we wanna use tls …

cat << EOF > /etc/acme-client.conf
# acme-client.conf

authority letsencrypt {
  api url "https://acme-v02.api.letsencrypt.org/directory"
  account key "/etc/acme/letsencrypt-privkey.pem"
}

authority letsencrypt-staging {
  api url "https://acme-staging-v02.api.letsencrypt.org/directory"
  account key "/etc/acme/letsencrypt-staging-privkey.pem"
}

#
# My Stuff
#

domain $fqdn {
  domain key "/etc/ssl/private/${fqdn}.key"
  domain full chain certificate "/etc/ssl/${fqdn}.fullchain.pem"
  sign with letsencrypt
}
EOF

set permission

chmod 600 /etc/acme-client.conf
chown root:wheel /etc/acme-client.conf

allow on pf.conf

be aware that your firewall needs to allow http from any for tls cert setup. put something like this after your default deny rule. if you’re not comfortable with the packet filter on openbsd, i highly recommend this few slides from Peter Hansteen, Massimiliano Stucchi, Tom Smyth / BSDCAN 2022.

block all
---
pass in log quick proto tcp from any to (self) port { 80 443 }
---

get tls cert

acme-client -v ${fqdn}

renew cert automatically

add the following line to your crontab

~ ~ 1 * * -ns acme-client your.fqdn.dot.com && rcctl reload httpd

BGP Full Feed for free

the most critical part may be the BGP Fulltable. If you’re a network engineer, you may have access to some routers where you can peer with. for lab and experimental usage, you can peer with AS 57355 / Lukasz Bromirski -> RPKI for Home Usage.

bgpd.conf

replace the router-id with your public ip (for example). it must be unique, your public ip should be find

export pubip="your-public-ip-address"

or get your public ip automatically if you have the ‘i3’ script installed from ip.inno.ch

export pubip=$(i3 -b -4)

deploy the bgpd.conf

cat << EOF > /etc/bgpd.conf

# define our own ASN as a macro
ASN="65001"

# global configuration
AS \$ASN
router-id $pubip

# this line is important !
nexthop qualify via default

# BGPLG
socket "/var/www/run/bgpd.rsock" restricted

# No need to update the fib for looking glass
fib-update no

# hold time
holdtime 7200

# validate rpki
include "/var/db/rpki-client/openbgpd"

neighbor 85.232.240.179 {
  remote-as 57355
  descr "lukasz.bromirski.net-4"
  multihop 15
}

neighbor 2001:1A68:2C:2::179 {
  remote-as 57355
  descr "lukasz.bromirski.net-6"
  multihop 15
}


## rules section

allow quick from  ebgp
deny  quick to    ebgp
EOF

set permission

chmod 600 /etc/bgpd.conf
chown root:wheel /etc/bgpd.conf

and start the bgpd daemon

rcctl enable bgpd
rcctl start bgpd

now, you should get a BGP Fullfeed like this:

# bgpctl show sum
Neighbor                   AS    MsgRcvd    MsgSent  OutQ Up/Down  State/PrfRcvd
lukasz.bromirski.net-4  57355     251013         36     0 22:50:34 880585
lukasz.bromirski.net-6  57355     129939         36     0 22:50:34 148767

enable rpki

The OpenBSD Guys wrote a own RPKI Client and included them in the Base System. We just have to enable the regulary Update in the Crontab

update every hour

# Update rpki client every hour
~	*	*	*	*	-ns nice rpki-client -v && bgpctl reload

BGP Looking Glas

all the files for BGP Looking Glass are already installed. You just need to set Permission / Ownership and you’re done

chmod 0550 /var/www/cgi-bin/bgplg
chown www:daemon /var/www/cgi-bin/bgplg

chmod 0555 /var/www/bin/bgpctl
chmod 4555 /var/www/bin/ping* /var/www/bin/traceroute*

Mount /var without nosuid

the http daemon is running in a chrooted environment for security reason. as we now have some binaries in the /var/www partition, we have to remount the /var partition without the nosuid flag. otherwise, the few binaries (ping, traceroute) are not allowed to run from this location with suid rights.

mount -u -o suid /var

and make it reboot safe

sed -E -i.bak 's/(.*\/var.*)(,nosuid)(.*)/\1\3/' /etc/fstab

confirm that nosuid is gone on line /var

diff /etc/fstab /etc/fstab.bak

# diff /etc/fstab /etc/fstab.bak
6c6
< 7a165224832557cb.e /var ffs rw,nodev 1 2
---
> 7a165224832557cb.e /var ffs rw,nodev,nosuid 1 2

Name Resolving

as the HTTP Daemon is running in a chrooted environment, we have to provide him the resolv.conf file

mkdir /var/www/etc
cp /etc/resolv.conf /var/www/etc/

finally restart all services

rcctl restart bgpd httpd slowcgi

# rcctl restart bgpd httpd slowcgi
bgpd(ok)
bgpd(ok)
httpd(ok)
httpd(ok)
slowcgi(ok)
slowcgi(ok)

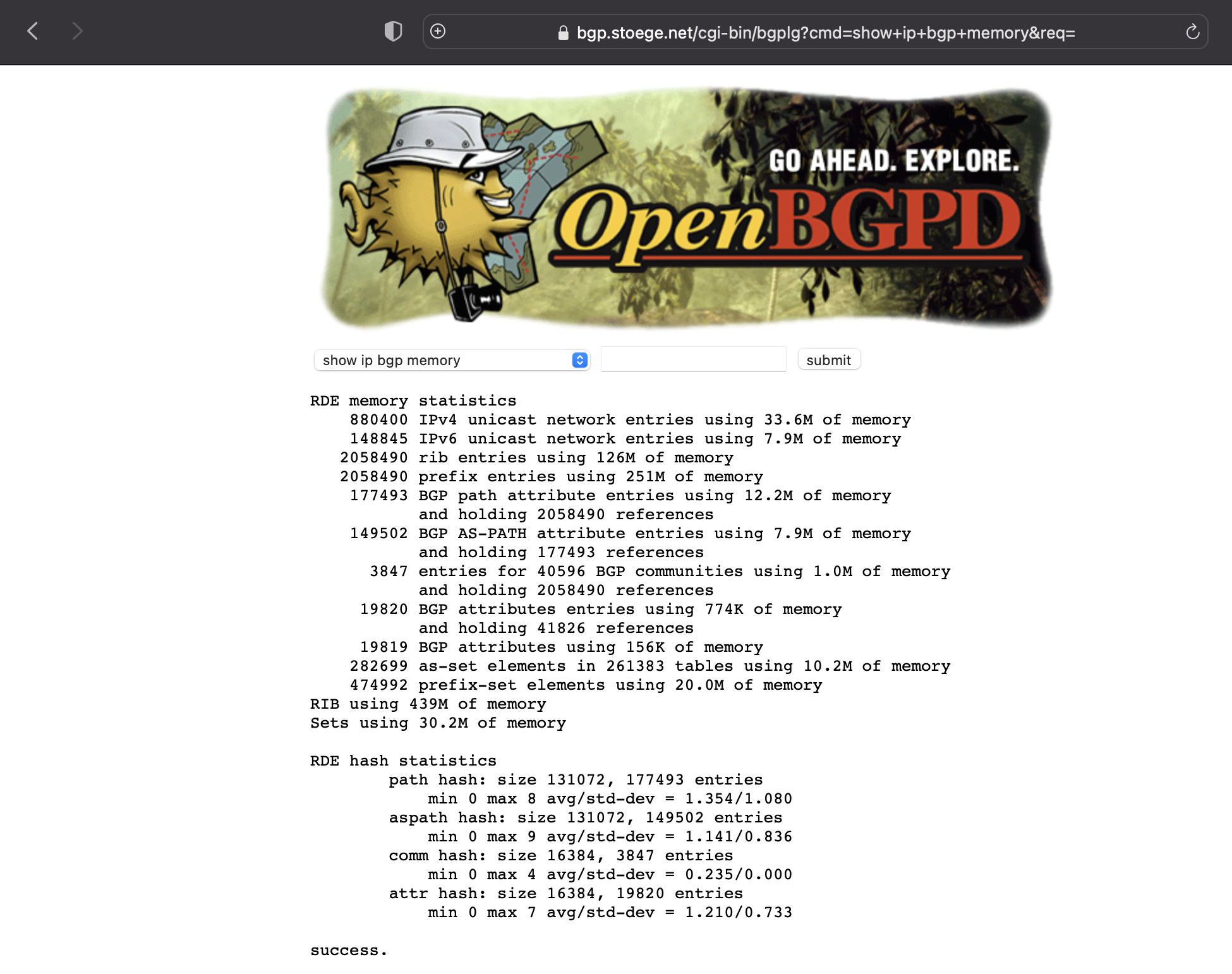

Browse Website

… and here we are … :-)

You can now get the View from the perspective of your Server. Best is you peer with your own BGP Routers the get their view.

Ktrace

ktrace -f bla.out chroot -u www /var/www/ /bin/ping 1.1.1.1
ktrace -f ping.out ping openbsd.org
